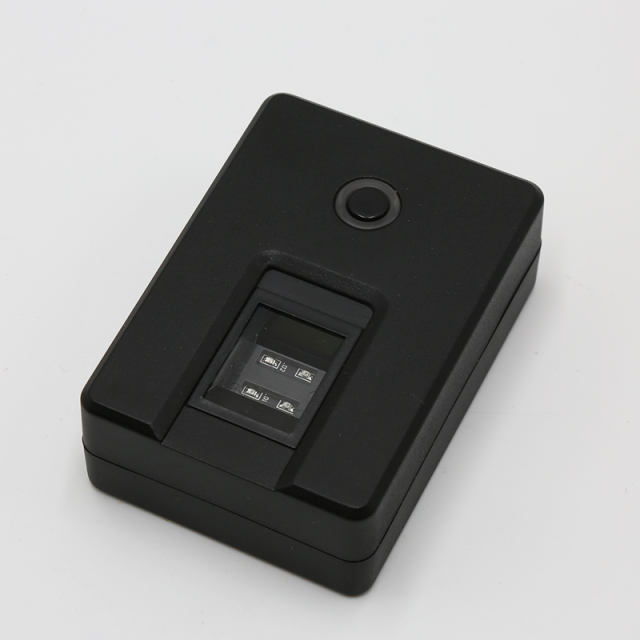

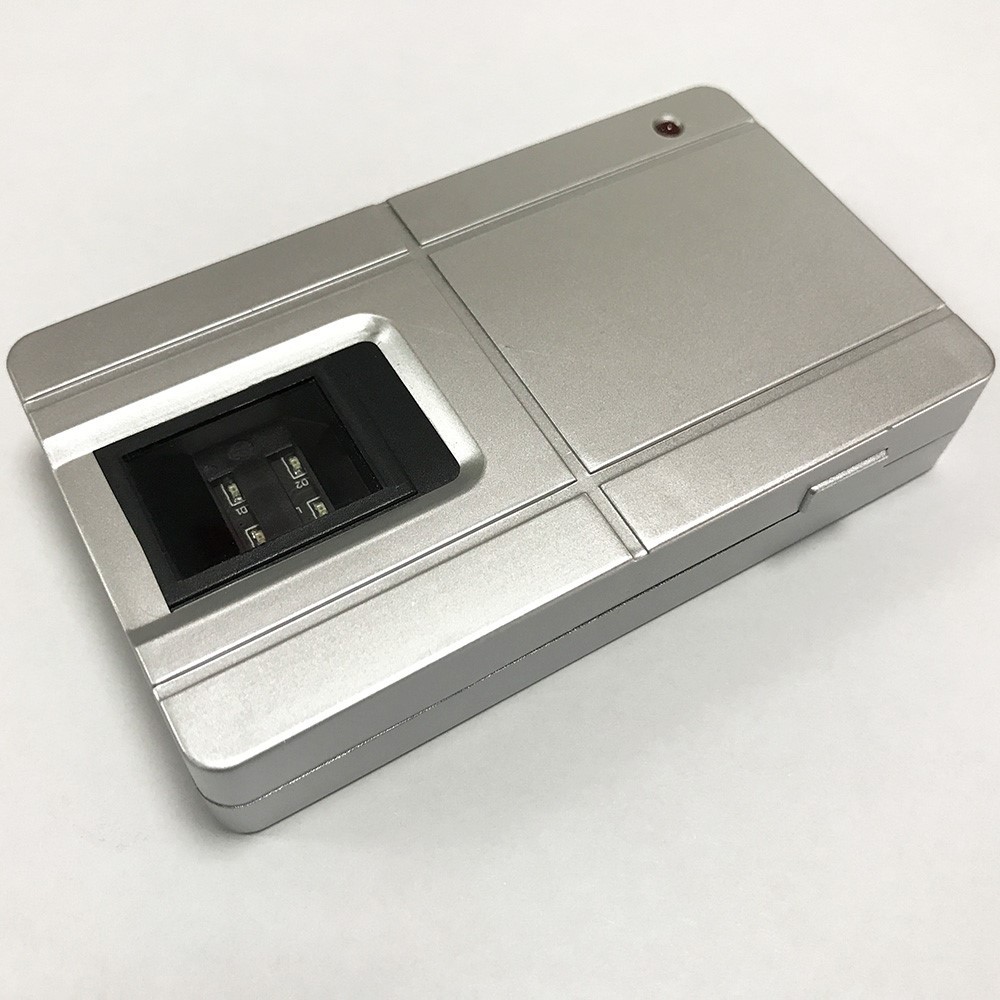

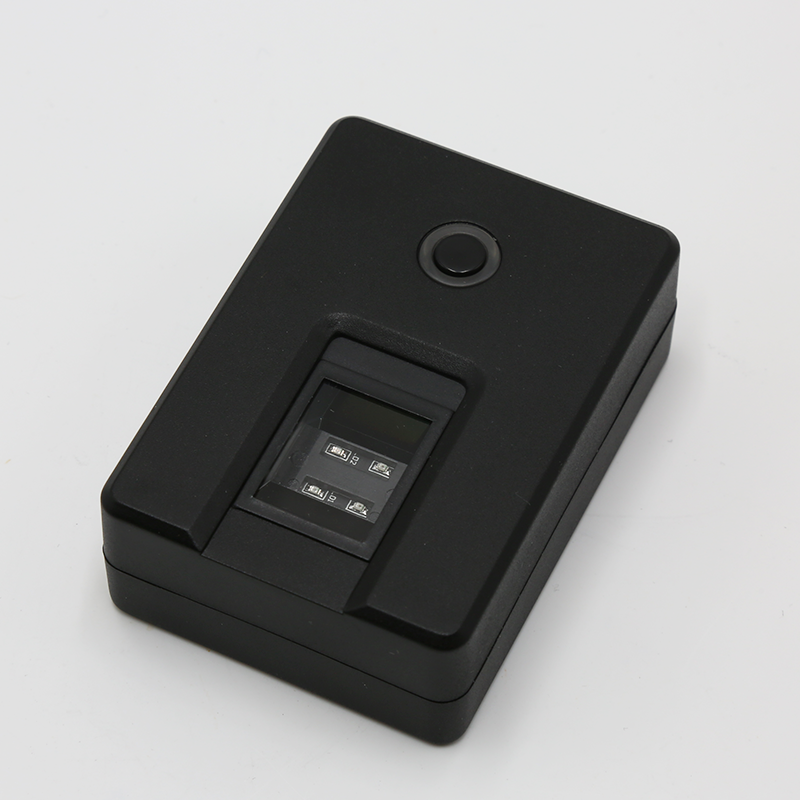

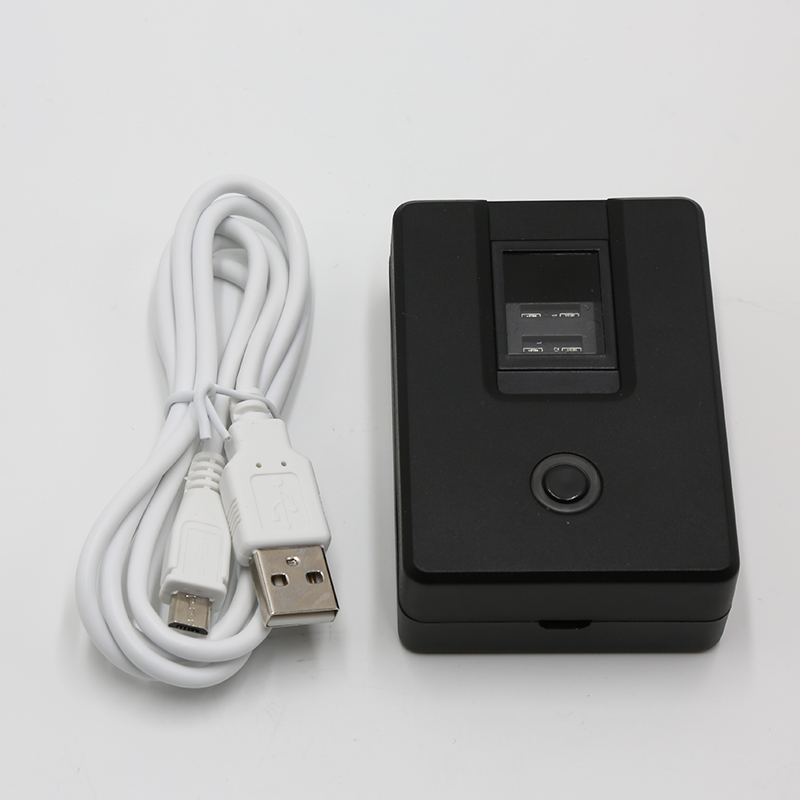

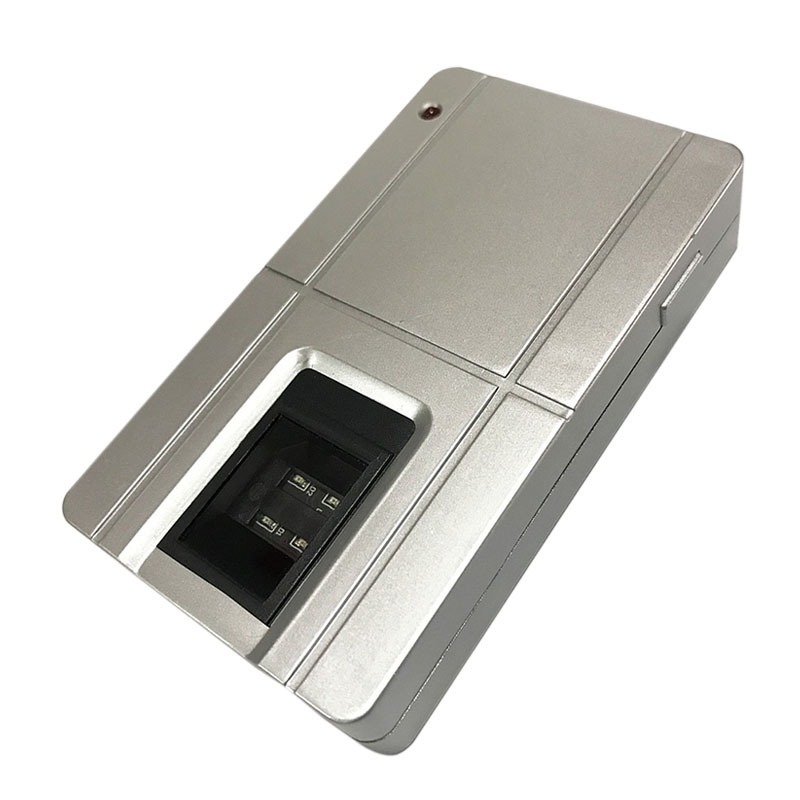

F02 is a compact portable wireless bluetooth fingerprint scanner with built-in rechargeable lithium battery and MICUSB interface for charging and communication. USB interface can be connected to the computer to make a beautiful fingerprint instrument, but also can use bluetooth to communicate with the current mainstream smartphones (Android and IOS systems) through wireless communication, fingerprint and smart card authentication. Genuine leather area collector, put an end to false fingerprint, to solve the difficult finger registration and identification problem. Can be used in various attendance and consumption systems, mobile certification such as oil and railway work inspection, police on duty and other occasions.This product can be used together with smart phone, as an economical mobile attendance system, instead of a professional
Press down the finger as shown in the picture correctly so that most of the characteristic areas of the finger are on the collecting surface to collect the maximum effective fingerprint. Be careful not to use fingertips or non-fingerprint areas to collect unwanted fingerprints. If the fingerprint collection is not good, the back comparison identification rate will be very low.
Our devices support both apple and android phones. Open the bluetooth on the phone, open the fingerprint collection APP and connect to the bluetooth. Refer to the following steps for specific software operation.
Note:mobilephonebluetoothconfirmationopen,bluetoothfingerprintinstrumentpower sourceopen.
The bluetooth fingerprint device is equipped with 1000mA lithium battery, which can be recharged repeatedly. The mobile APP can obtain the battery power. Please charge the machine when the battery is low or the machine cannot be turned on when the light is not bright enough and keeps flashing.Charging current 500mA current, can be charged with an adapter or even a computer.

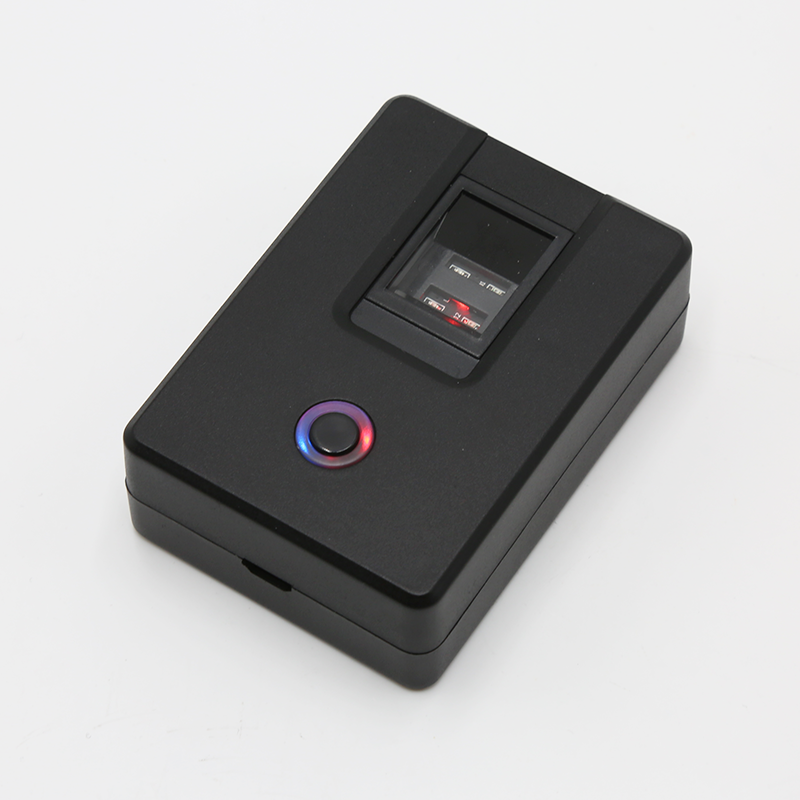

When the power is turned on, the power indicator will flash, indicating that it is charging, and the fully charged power indicator will always be on.
Technical parameters
Product User’s Guide - 5 -
|
Communication:
|
BLUETOOTH and USB
|
|
Operating voltage:
|
1000mAH(3.7v lithium battery)
|
|
Operating current:
|
100mA(Max)
|
|
Support system:
|
Windows，Linux，Mac OS，Android， IOS.etc.
|
|
FRR
|
0.01%
|
|
FAR:
|
0.0001%
|
|
Capture Speed(s)
|
<1 second
|
|
Image format:
|
WSQ,PNG,BMP,JPEG,etc.
|
|
Image resolution:
|
500DPI
|
|
Working temperature
|
-20°C~+70°C
|
|
Working humidity
|
0-95%（noncondensing）
|
|
Antistatic capacity
|
IEC6100-4-2 （ industrial standard ） 15KV
|
|
Image size:
|
256x288 or 256x360
|
|
Image resolution:
|
500DPI
|
|
Appearance size:
|
83mm*42.5mm*16.5mm
|
Open the power button of the bluetooth fingerprint device, connect to the android phone, open the software, press the menu key at the bottom of the phone, open the phone bluetooth, find the device ofthe fingerprint device, the name of the device will be pasted on the bar code on the back of the fingerprint device.When the display is connected to the device, you can use
your phone to operate the bluetooth printer.
Main operations: fingerprint registration, deletion, fingerprint comparison, fingerprint image display, fingerprint template up and down, read card, write card, etc. Specific operation to see the mobile development documentation.
