Description
Product specification

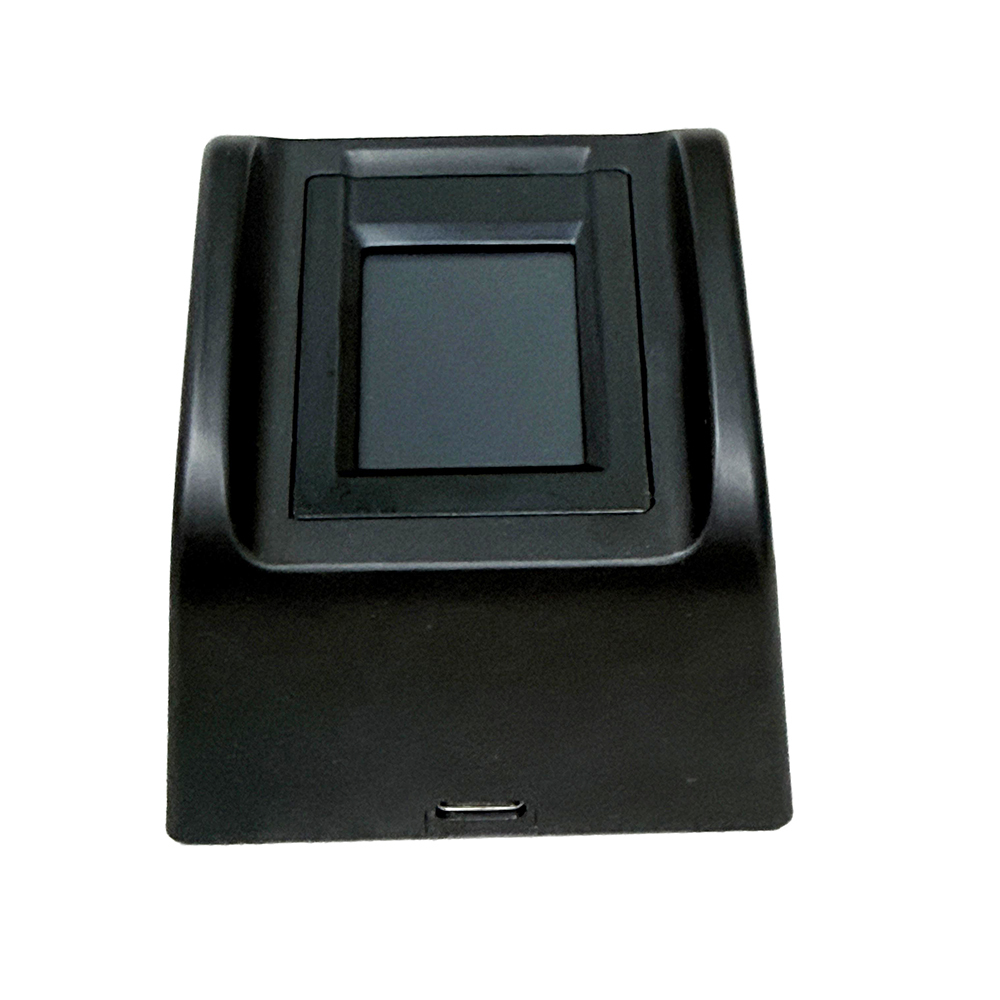

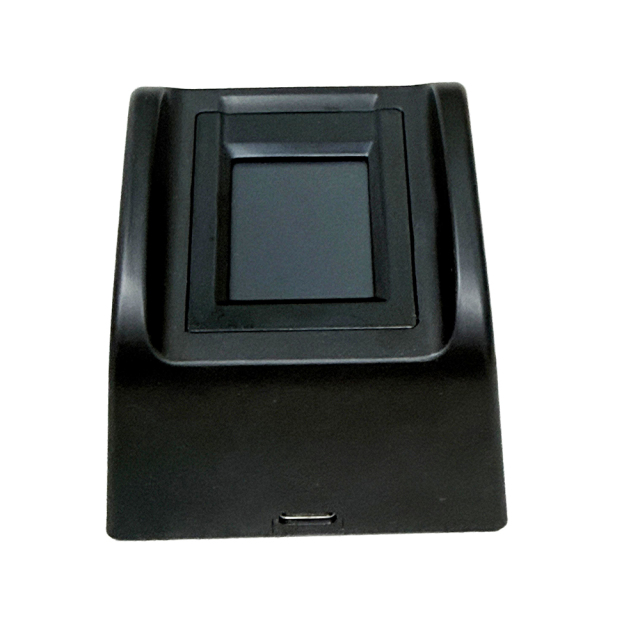

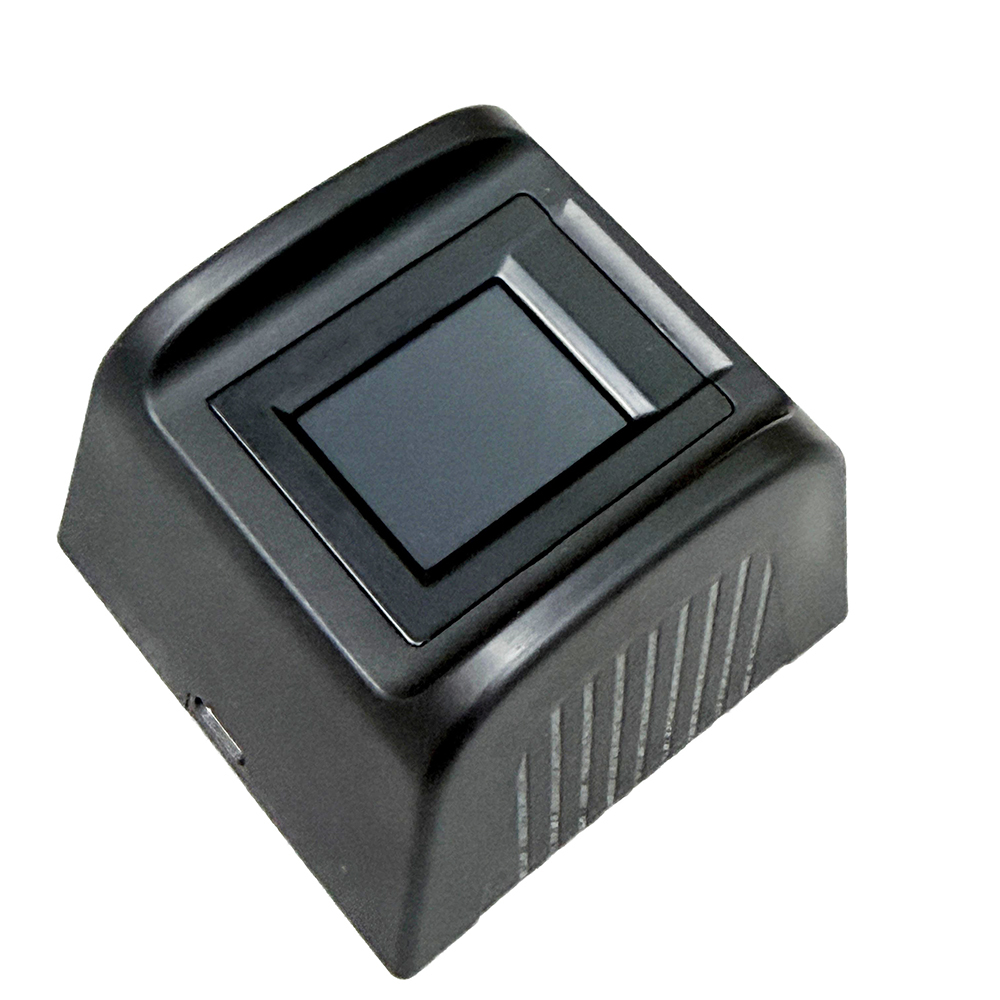

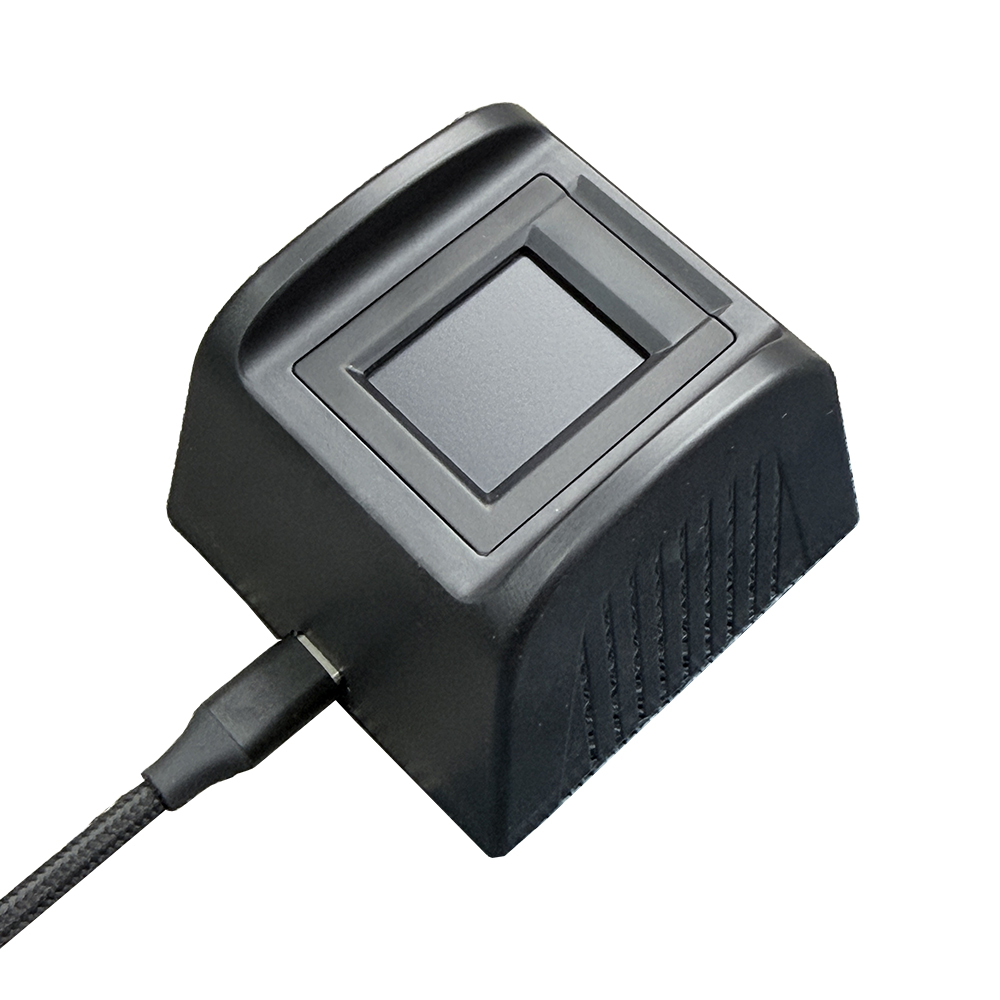

Model Number: F30
Interface: USB, Support OTG(TYPE-C,Micro-USB)
RESOLUTION 500 PPI
PLATEN SIZE 20.32mm x 25.4mm / 0.8” x 1.0”
SENSING AREA 20.32mm x 25.4mm / 0.8” x 1.0”
SCANNER ASSEMBLY 75mm x 66mm x 48mm
DIMENSIONS 2.95" x 2.6" x 1.89"
(OEM: 46.5mm x 39mm x 27.5mm)
GRAY SCALE 256 grayscale dynamic range
IMAGE SIZE 400 (W) x 500 (H) pixels
SUPPORTED IMAGE FORMATS RAW, JPEG2000, BMP, PNG, WSQ
FBI CERTIFICATION/ PIV 071006, FIPS 201, FAP 30 /
IMAGE CERTIFICATIONS Certified to Mobile ID Requirements
INTERFACE USB 2.0
API INTERFACE Single-finger image
Multi-device / multi-thread support
USB CERTIFICATION SPEC USB-IF USB.ORG
USB LEVEL 4.40V – 5.25V
FCC/CE CONFORMANCE FCC Part 15 (per ANSI C62.4:2003)
Class A, CSA ICES-003 Class A, CE
Emissions: EN 55022:2006 Class A,
CE Immunity: EN 55024:1998/
A1:2001/A2:2003, IEC 61000-4-2
SPEED Min frame rate > 8 FPS
EQUIPMENT SAFETY IEC 60950-1
PRODUCT WEIGHT 170 grams / 6 oz
(Columbo OEM: <70g)
USB POWER REQUIREMENT/ 4.4 to 5.25v, full scanning <115ma,
CONSUMPTION standby <50 ma
POWER SOURCE USB Host
AIR DISCHARGE / In compliance with IEC 61000-4-2
CONTACT DISCHARGE
OPERATING TEMPERATURE -10°C ~ +55°C / 14°F ~ 131°F
HUMIDITY 30~85% RH < 40°C / 104°F
(non-condensing)
STORAGE TEMPERATURE -30°C ~ +60°C / -22°F ~ 140°F
HAZARDOUS MATERIAL RoHS Directive 2002/95/EC
INGRESS PROTECTION / WATER/DUST Desktop: IP67 / OEM: IP65
OS SUPPORT Windows 7, Windows 8.X, Windows 10,
Windows Server, Windows Mobile 6.5,
Linux, Android 4.0 (or higher)
SURFACE DURABILITY MIL-C-675c 4.5010, MIL-STD-810F
SURFACE RESISTANCE / Ammonia, IPA, methanol,
ALLOWABLE CLEANING CHEMICALS soaps/detergents, salt water
VIBRATION TEST per MIL-STD-810F (Method 514.5),
Category 24, Fig. 514.5C-17
WARRANTY 1 year hardware warranty (extended
warranty available upon request)
